Wire electrical discharge machining (EDM) is a non-traditional machining process that uses electricity to cut any conductive material precisely and accurately with a thin, electrically charged copper or brass wire as an electrode. During the wire EDM process, the wire carries one side of an electrical charge and the workpiece carries the other side of the charge. When the wire gets close to the part, the attraction of electrical charges creates a controlled spark, melting and vaporizing microscopic particles of material. The spark also removes a miniscule chunk of the wire, so after the wire travels through the workpiece one time, the machine discards the used wire and automatically advances new wire.
The process takes place quickly—hundreds of thousands of sparks per second—but the wire never touches the workpiece. The spark erosion occurs along the entire length of the wire adjacent to the workpiece, so the result is a part with an excellent surface finish and no burrs regardless of how large or small the cut.

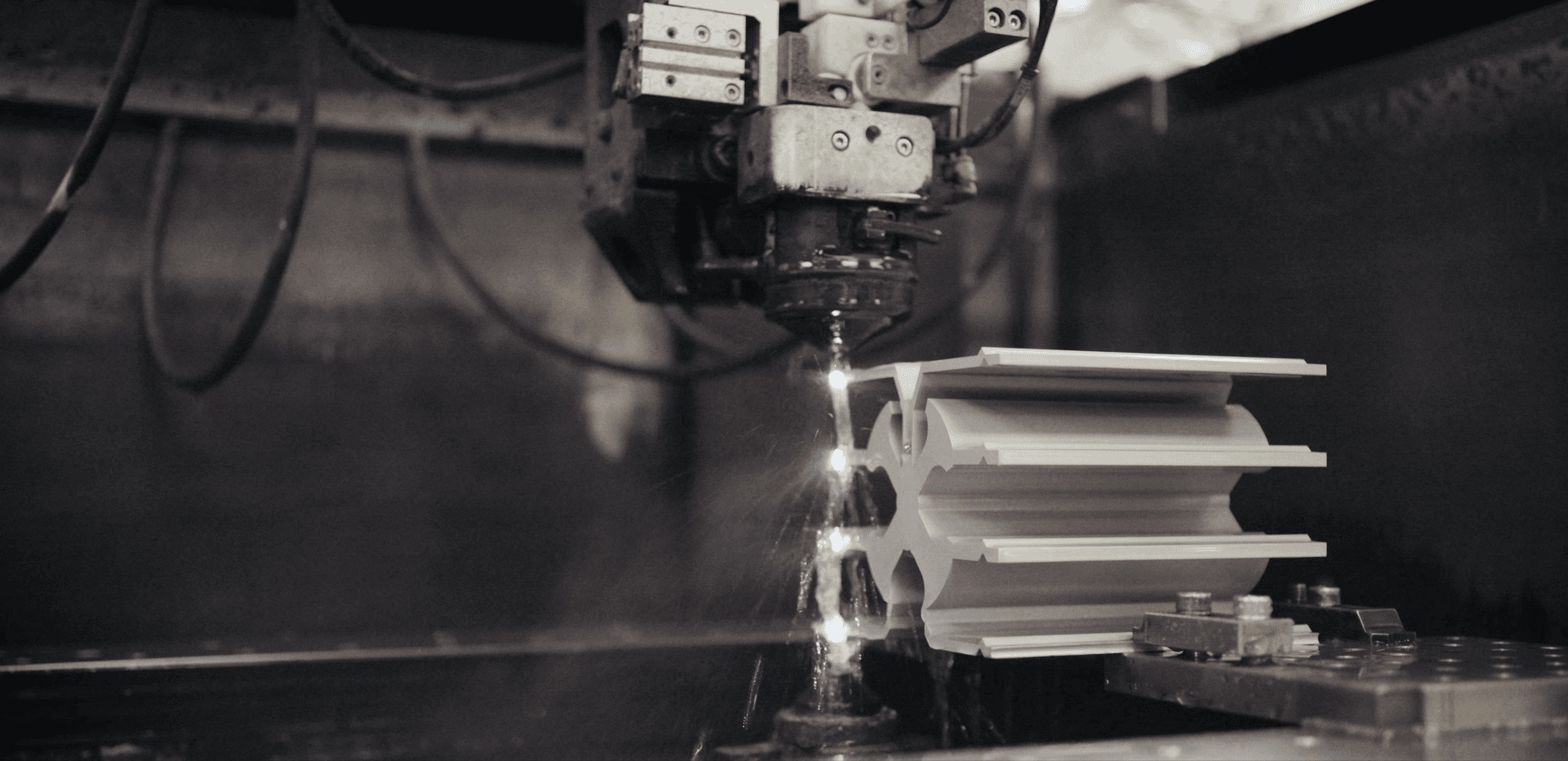

Wire EDM machines use a dielectric solution of deionized water to continuously cool and flush the machining area while EDM is taking place. In many cases the entire part is submerged in the dielectric fluid, while high-pressure upper and lower flushing nozzles clear out microscopic debris from the surrounding area of the wire during the cutting process. The fluid also acts as a non-conductive barrier, preventing the formation of electrically conductive channels in the machining area. When the wire gets close to the part, the intensity of the electric field overcomes the barrier and dielectric breakdown occurs, allowing current to flow between the wire and the workpiece, resulting in an electrical spark.

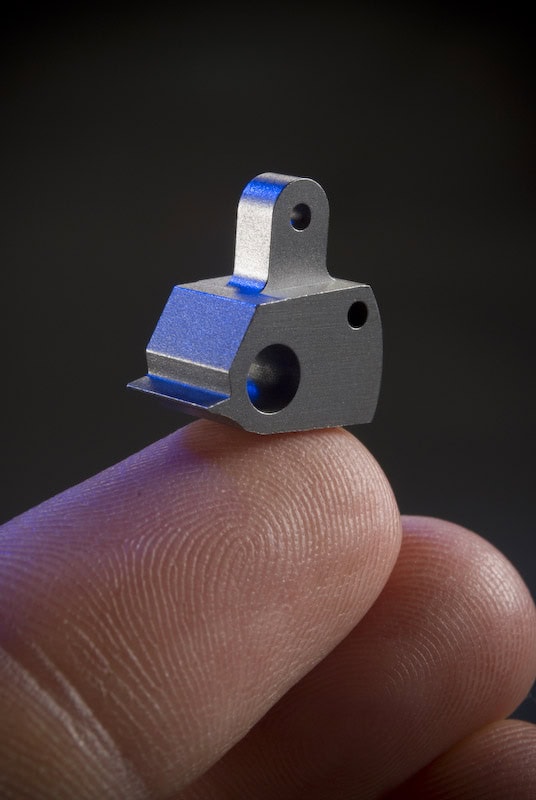

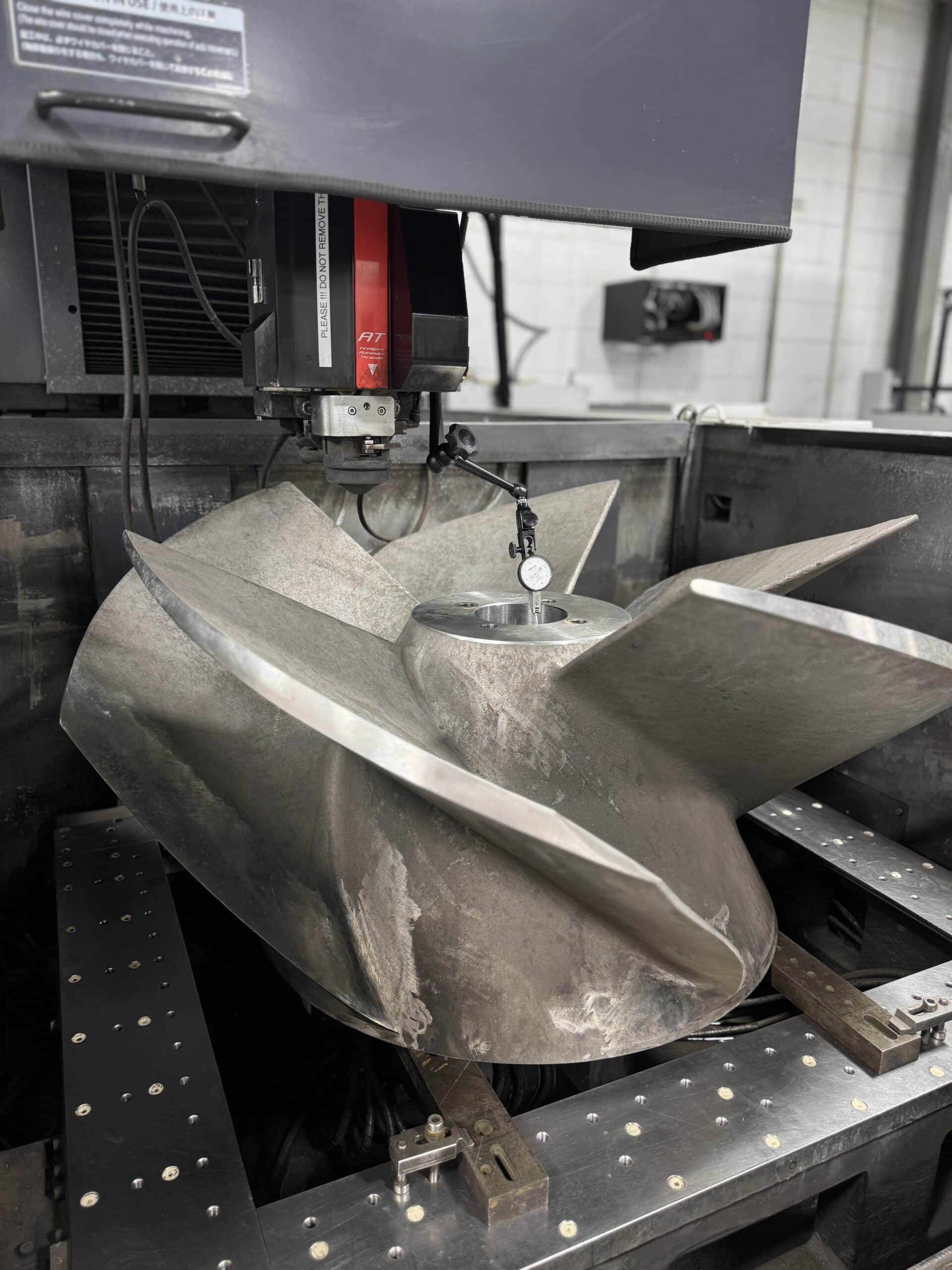

On most wire EDM machines, the path of the wire is controlled by computer numerically-controlled (CNC) diamond guides, which can move independently of each other on multiple axes for tapered cuts and complex shapes such as small-radius inside corners and narrow slots. Additionally, wire sizes vary from 0.012” diameter down to 0.004” for high-precision work. Wire EDM is capable of holding tolerances as tight as +/-0.0001”. Wire EDM provides a solution to the problems encountered when trying to machine materials that are normally difficult to work with, such as hardened steel, aerospace-grade titanium, high-alloy steel, tungsten carbide, Inconel, and even certain conductive ceramics.
One requirement of the wire EDM process is a start hole for threading the wire if the part’s features do not allow you to cut an edge. Wire EDM can only machine through features; however, we can quickly drill a hole in any conductive material using another type of EDM, small hole drilling or “hole pop” EDM.
