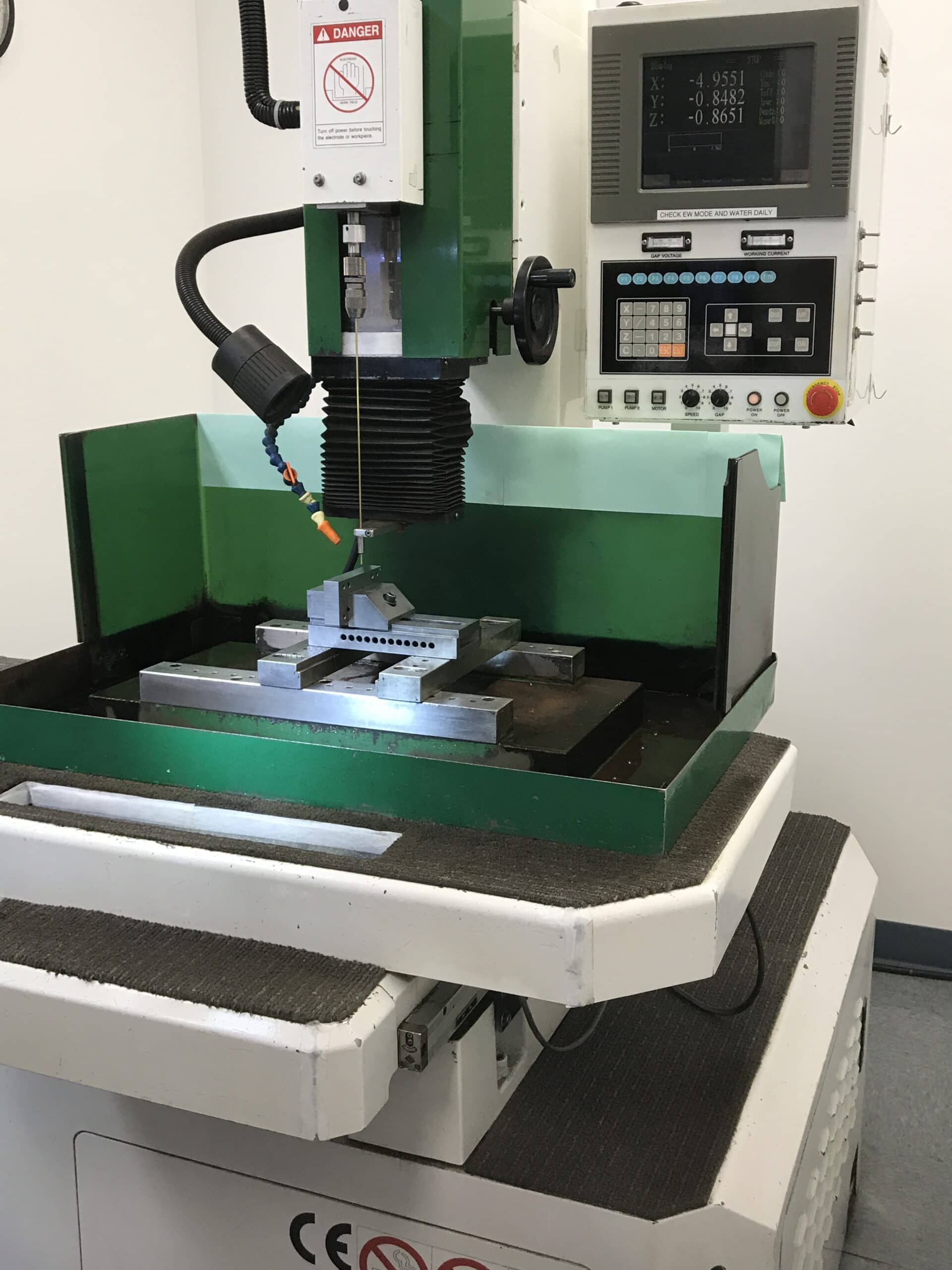

Small Hole EDM (Hole Pop EDM)
High-precision EDM drilling for aerospace, defense, and medical applications requiring tight tolerance micro-hole production.

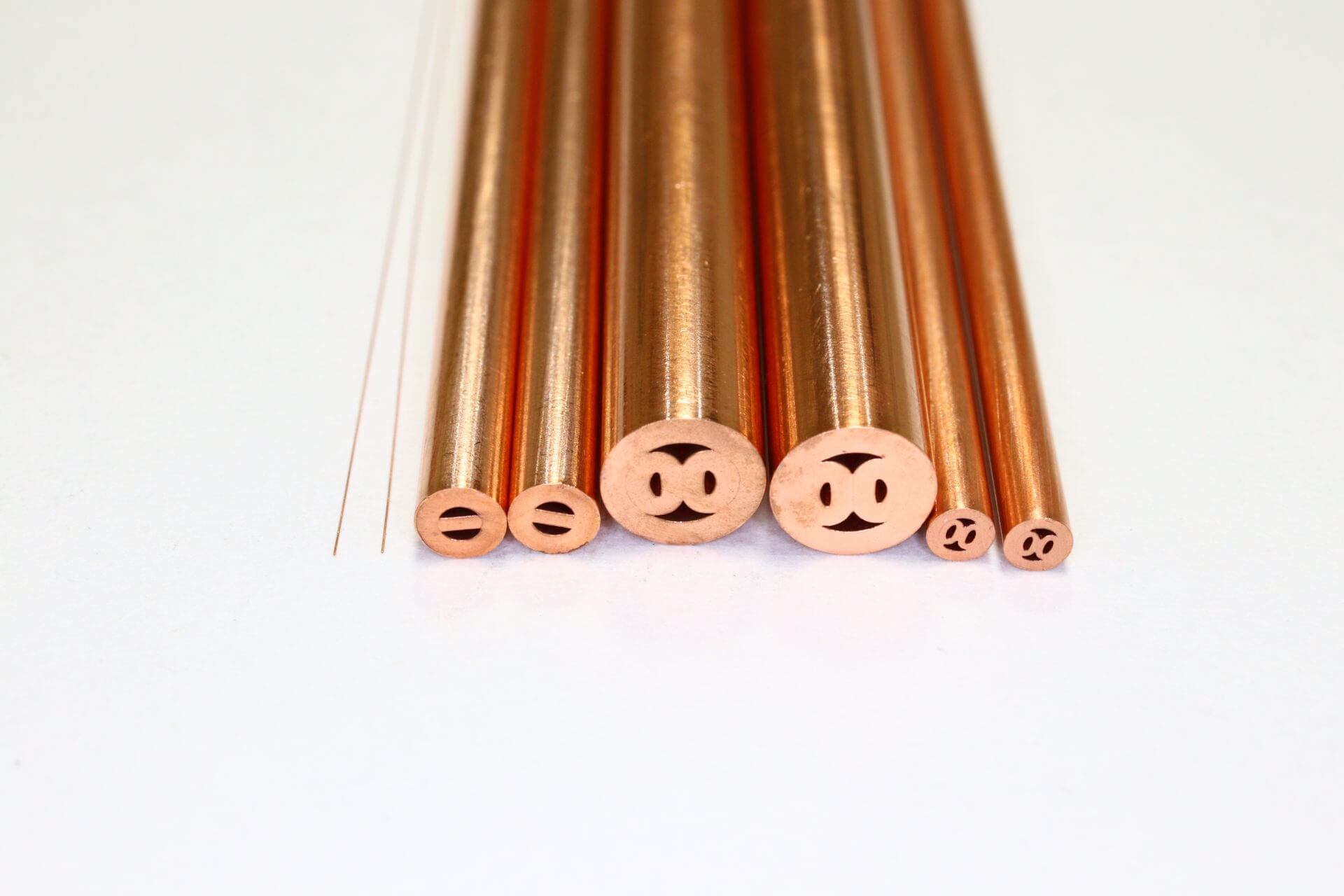

Small hole drilling EDM (hole pop EDM) uses a hollow electrode to create precise high aspect ratio holes in conductive materials using controlled electrical discharges.
Ideal for hardened metals and precision components where conventional drilling would cause stress or distortion.
Hole size is determined by electrode diameter, ensuring repeatable accuracy and tight tolerance control.
Dielectric fluid continuously flushes debris for clean, deep, and stable hole formation.
Applications
- Wire EDM start holes
- Cooling channel drilling
- Vent and ejector pin holes
- Deep blind hole machining
- Fastener / tap removal
Key Benefits
Burr-free drilling in hardened materials without mechanical stress or tool wear.
High repeatability and precision for mission-critical aerospace and medical components.
Hole Pop EDM Capabilities
| Specification | Hole Pop EDM |
|---|---|
| Max. Material Thickness | 12″ (304.8 mm) |
| Max. Part Length | 36″ (914.4 mm) |
| Max. Part Width | 24″ (609.6 mm) |
| Taper Angle | — |
| Min. Internal Corner Radius | — |
| Wire/Electrode Diameter | .010″–.125″ |
| Wire/Electrode Materials | Brass Copper Tungsten |
| Tolerances (+/-) | +/-.0015″ (locational) |
| Equipment Capabilities | Fully programmable CNC |
Why Choose New Jersey Precision Technologies?
- Specialized EDM drilling expertise
- Aerospace, defense, and medical experience
- Machining hardened & exotic materials
- Consistent tight-tolerance production
NJPT delivers high-precision EDM solutions engineered for critical applications where failure is not an option.
From prototype to production, we ensure accuracy, repeatability, and reliability in every part.
Ready to discuss your precision machining needs? Please contact NJ Precision Technologies by phone at 1.800.409.3000, fax at 1.800.409.3022 or email at sales@njpt.com.
Visit our introductory pages for Wire EDM, Small Hole EDM and Sinker EDM more information on the EDM process.
