Transform your extrusion business with custom tooling from NJPT.

New Jersey Precision Technologies specializes in fast delivery of custom plastic extrusion tooling for a variety of industries and applications, including: point-of-purchase (e.g., price channels, displays, slat walls, etc.), packaging products, commercial products, industrial and home building products (e.g., window lineals—tracks, frames, trim, etc.), tubing and hollow profiles, sheet and film, and more.

Get your products to market faster.

Our customers need to get product to their customers quickly while keeping tooling and extrusion production costs down. That’s why we maintain a comprehensive inventory of extrusion tooling blanks in various sizes including die blanks, feed head/adapter blanks, breaker plates, downstream calibrator blanks, sizing plate blanks, cutter bushings and breaker plates. Most shops would have to start from scratch; however, in many cases, when NJPT receives your tooling order, we can pull a finished blank from inventory and only have to machine the center portion. New Jersey Precision Technologies is committed to delivering your tooling quickly, with lead times ranging from one to five business days for most projects. With dozens of wire EDM and CNC machines running 24/7, we can fast-track your tooling requirements with ease.

Better tooling improves extrusion quality and increases feed rates.

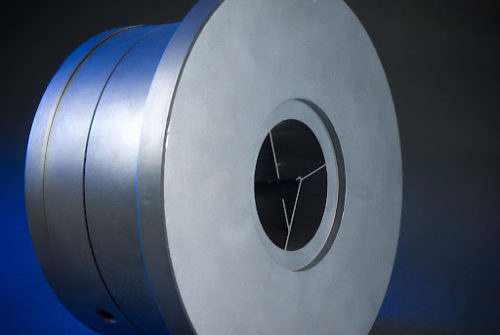

Better tooling
New Jersey Precision Technologies’ superior tooling design and manufacturing techniques can help increase extrusion feed rates by up to 25 percent or more for a variety of materials, including rigid PVC, flexible PVC, polystyrene, ABS, acrylic, and more. All of our tooling is optimized to streamline the extrusion pathway and maintain balanced laminar flow, eliminating eddies and turbulence.We customize your tooling to suit your specific needs, taking into account material properties, operating feed rate, as well as the characteristics of the particular extrusion machine the tooling will be used with. New Jersey Precision Technologies builds all types of plastic extrusion tooling, from single extrusion tools to co-extrusion or multi-extrusion tooling, and our dedicated engineers and manufacturing professionals are ready to help you make your next project a success.

Click here to learn more about our Flexible PVC Co-Exrtusion.

New Jersey Precision Technologies is the most efficient and economical choice for all of your plastic extrusion tooling needs. Contact us by telephone at 1.800.409.3000, fax at 1.800.409.3022, or email us at sales@njpt.com to request a quote.

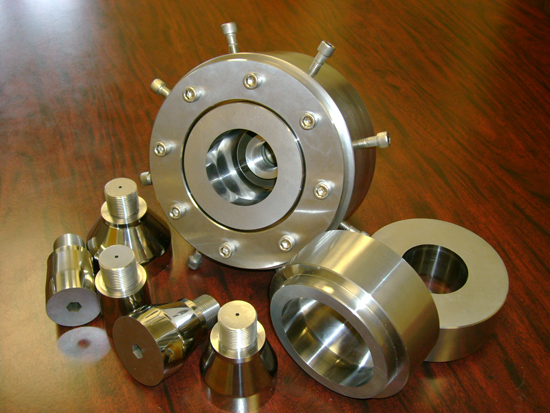

Plastic Extrusion Tooling Services

Plastic Extrusion Tooling
  • Extrusion Dies
  • Co-Extrusion Dies
  • Multi-Extrusion Dies
  • Transition Plates
  • Vacuum Calibrators
  • Downstream Coolers
  • Feed Heads/Adapters
  • Cutter Bushings
  • Breaker Plates
  • Cutter Knives
Plastic Extrusion Tooling Blanks
  • Die Blanks
    • Round
    • Rectangular
  • Calibrator Blanks
    • Aluminum
    • 420 Stainless Steel
  • Sizing Plate Blanks
    • Aluminum
    • Brass
    • Stainless Steel
  • Breaker Plate Blanks
  • Feed Heads/Adapters for All Extruder Types:
    • Davis-Standard
    • Welex
    • American Kuhne
    • American Leistritz
    • Killion
    • Other: custom-made to your specifications
General Capabilities
  • Engineering Services
    • Tooling design consultation
    • 3-D transition flow modeling
    • CAD modeling (2-D, 3-D)
    • Design for:
      • Smooth laminar flow
      • Increased flow rates
      • No burning
    • Artificial Intelligence (AI) Expert System software to convert CAD data into CNC programs
    • Inspection and Reverse Engineering
      • Vision System
      • Programmable CMM
  • CNC Turning
  • CNC Milling
  • CNC Grinding
  • CNC EDM
    • Wire EDM
    • Conventional/Sinker EDM
    • Small Hole EDM
  • Grinding and Finishing
  • Assembly
Secondary Capabilities
  • Polishing
  • Anodizing
  • Heat Treatment
Tolerances (+/-) ±.0001 in.
Stocked Materials
  • Stainless Steel
    • 316
    • 416
    • 420
    • 440
  • Aluminum
    • 6061-T6
    • 7075-T6
  • CPM-10V
  • Steel and Tool Steel
    • Cold-rolled steel (CRS)
    • A2
    • 4140
    • 4340
  • Brass
Average Lead Time 24 Hours—1 Week
Industry Focus/Applications
  • Point of Purchase (POP)
    • Display items
    • Price channels
    • Slat walls
  • Displays
  • Window/Architectural
    • Window Lineals
    • Tracks
    • Frame
    • Trim
  • Industrial/Commercial
  • Tubing and Hollow Profiles
  • Sheet and Film
Industry Standards
  • AS 9100 Certified
  • ISO 9001:2008 Certified
  • ISO 13485:2016 Certified
  • American National Standards Institute (ANSI)
  • American Society of Mechanical Engineers (ASME)
  • American Society for Testing and Materials (ASTM)
  • Current Good Manufacturing Practices (cGMP) Compliant
  • Food and Drug Administration (FDA) Compliant
  • Military Specifications (Mil-Spec)
  • Society of Automotive Engineers (SAE) Compliant
  • Restriction of Hazardous Substances Directive (RoHS2)
  • Regulation of Conflict Minerals (Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502)
File Formats We can read all file formats, including:
  • AutoCAD (DWG, DXF)
  • Drawing Interchange Format, Drawing Exchange Format (DXF)
  • Pro-E or Pro/Engineer (DRW, PRT, XPR)
  • SolidWorks (SLDPRT, SLDDRW, SLDDRT)
  • Standard for the Exchange of Product Model Data (STEP, STP)
  • Initial Graphics Exchange Specification (IGES)
  • Inventor (IDW, IPT)
  • Parasolid (XT, XB)
  • Portable Document Format (PDF)
  • Joint Photographic Experts Group (JPEG, JPG)
  • Tagged Image File Format (TIFF)
  • Graphics Interchange Format (GIF)
